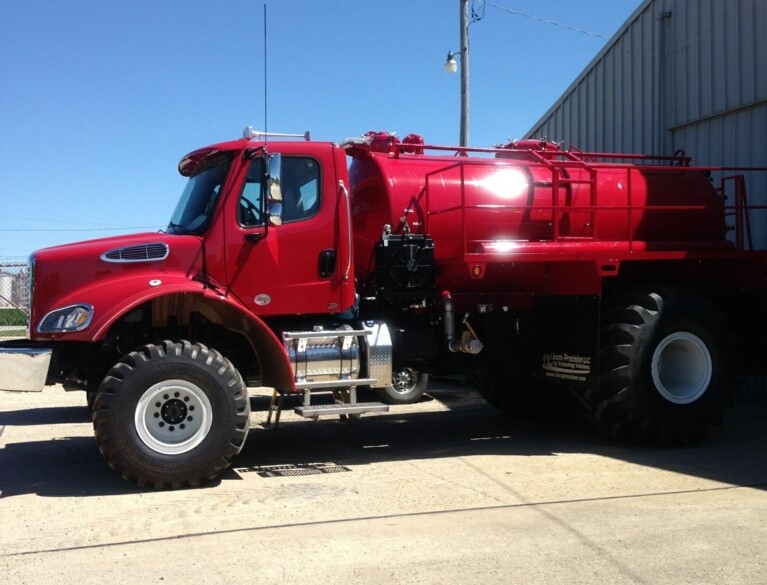

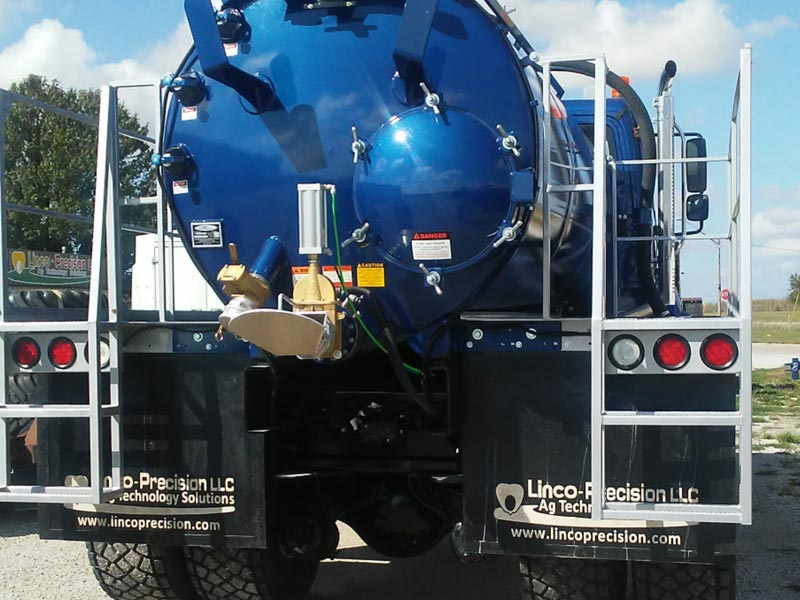

Freightliner 108SD 4x4
Semi-Float Chassis with SBA, Air-Ride Cab equipped with a Cummins L-9 Engine, Allison 3000RDS 6-speed with Auto Neutral automatic transmission, push button control dash mounted, 2-speed Marmon-Herrington Auxiliary programmable transmission, 1200 sq. in. radiator, M-22 23,000 lb. front axle, dual power steering gear boxes, power steering cooler, Meritor RS30-185 single rear axle with 30,000 lb. leaf rear suspension, rear shock absorbers, 14” Chromed Steel Front Bumper, Frame-mounted Front Tow Hooks, 110 US gallon Polished Aluminum fuel tank, 24 inch Front Frame extension, Air dryer w/heater, Eng. Block Heater, Heated Fuel-Water Separator, Dual Air Horns, Power door locks and windows, Dual Heated-Remote Controlled West Coast Mirrors, Dual 8" convex spot mirrors, 63” x 14” Tinted Rear Window, Tinted Operating Wing Windows, Center Storage Console on back wall, Adjustable Tilt and Telescoping Steering Column, 18" Steering Wheel, Full gauge package, AM/FM/WB radio with CD player, USB, Front aux. inputs, Overhead Business-Band console, LED light package and a Premium Woodgrain interior package.

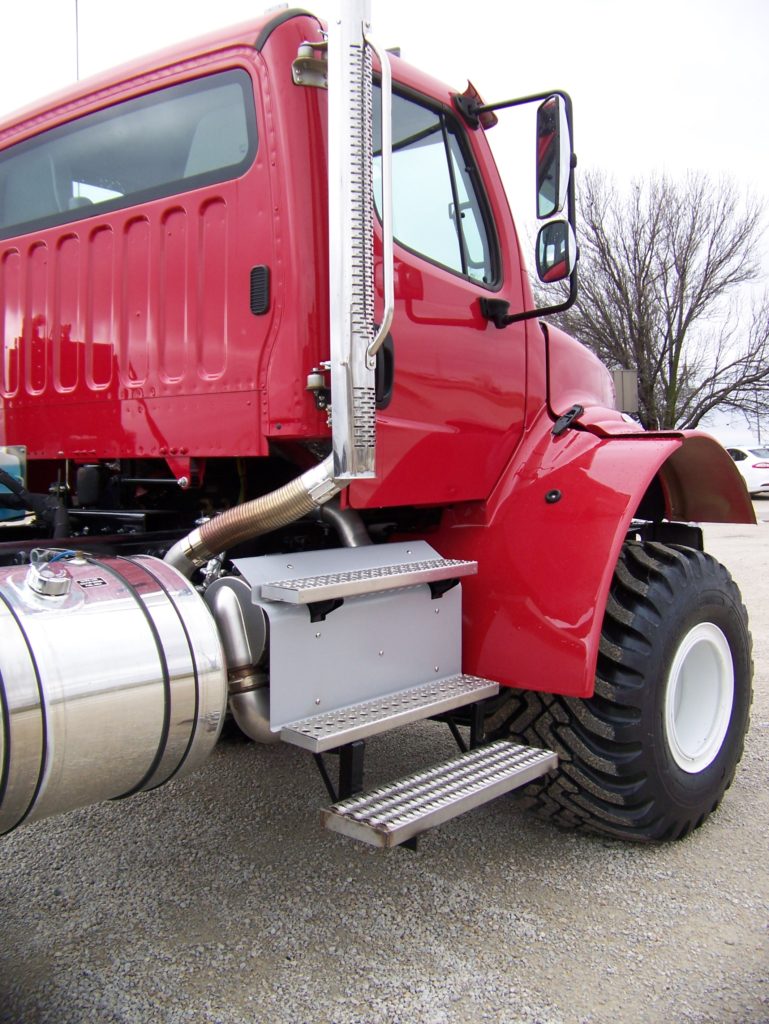

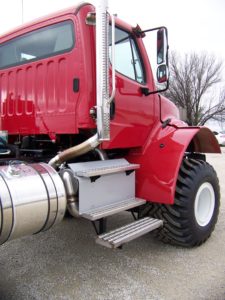

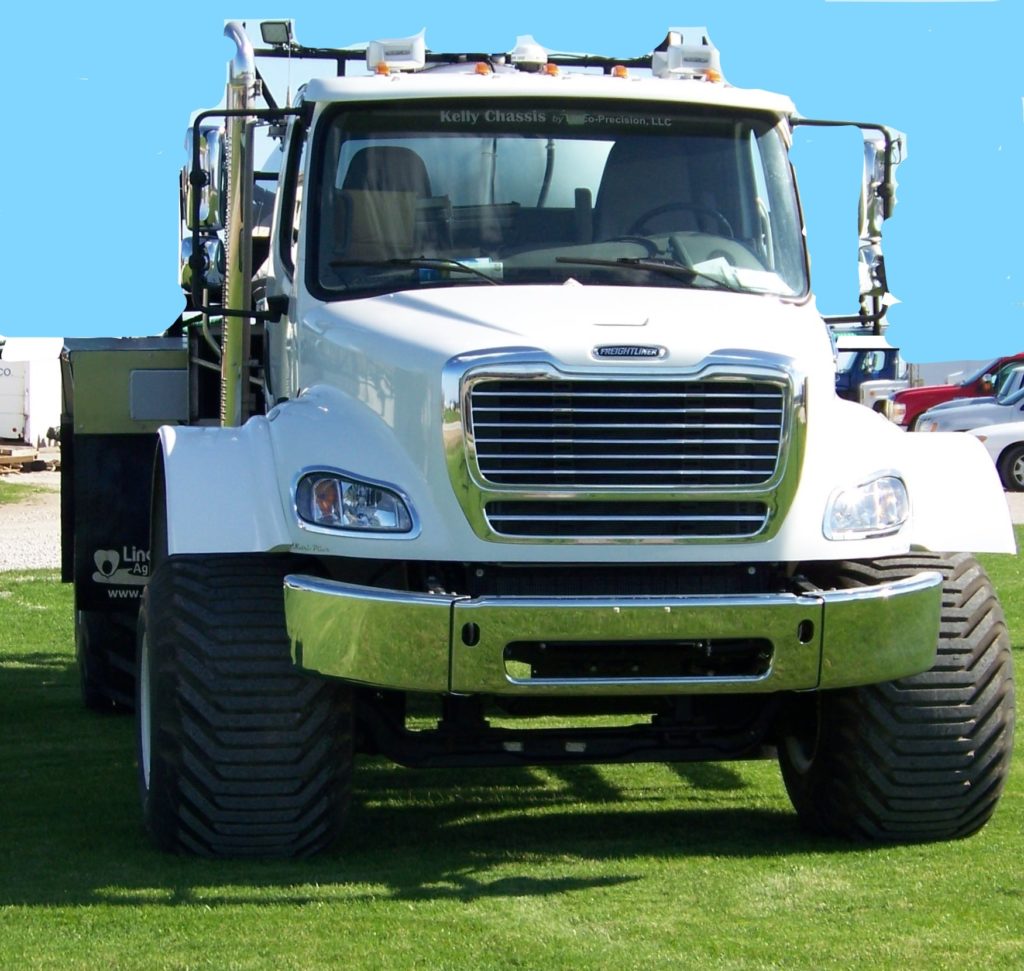

Freightliner M2-112 SBA 4x2
Cummins L-9 370 HP. 350 hp @2000RPM, 2013 Onboard diagnostics/2010 EPA/Carb/GHG14
Air Cleaner: Side of hood air intake with firewall mounted Donaldson air cleaner, Air Compressor: Cummins Turbocharged 18.7 CFM with internal safety valve
Electronic Engine integral shutdown protection system, Cummins exhaust Brake integral with variable geometry turbo with on/off dash switch
Allison 3000 RDS Programmable 6-Speed Automatic w/PTO provision transmission, dash-mounted push-button electronic shift control,
Transmission Cooler: Water-to-oil Transmission cooler in radiator end tank
Auxiliary Transmission: Eaton Fuller AT-1202 A-3
Front Steer Axle: 20,000 lbs. .Front Suspension: 20,000 lb. Taper leaf Front Suspension
Rear Drive Axle: 40,000 lb. Two-Speed Planetary Rigid Axle, Rear Suspension: 40,000 lb. rear with Heavy Duty overload leaf springs
Maximum Vehicle capacity: 60,000 lbs.
Air Ride Cab Suspension
1300 Sq Inch Aluminum Radiator, Blue-stripe coolant hoses Phillips-Temro 1000 Watt/115 Volt Engine Block Heater
Fan Clutch: Horton Drivemaster on/off fan drive, automatic fan control without dash switch
Air Brake Package: Wabco 4S/4M ABS w/o traction control
Air Brake Dryer: BW AD-IP air dryer with heater
Brakes: 16.5x6 Meritor Q+ cast spider, HD cam front Brakes, Non-asbestos lining, cast iron brake drums, 16.5x5 Meritor P cam rear brakes, double anchor, cast iron shoe & drum, non-asbestos lining
Slack Adjusters: Front: Meritor Automatic, Rear: Haldex Automatic
Steering: Dual steering gear, Oil/Air power steering cooler, Adjustable Tilt and Telescoping Steering column

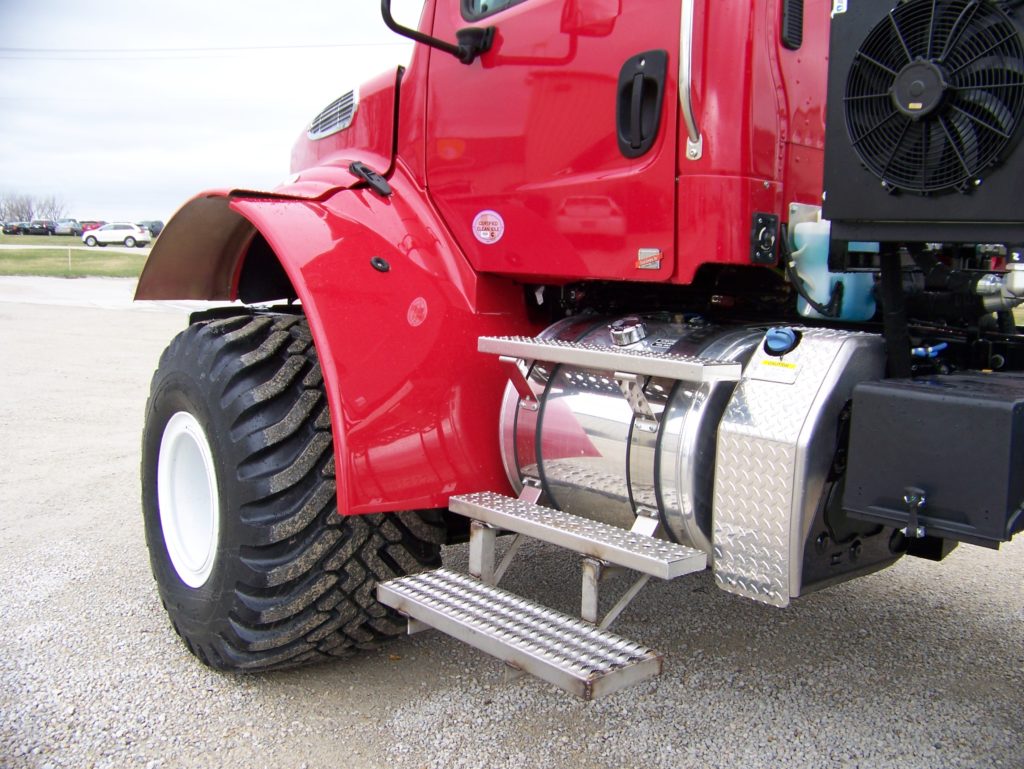

Fuel Tanks: 100 Gal capacity, polished aluminum w/ polished stainless steel bands, locking fuel caps. Fuel/Water Separator: Alliance Fuel Filter/Water Separator
Mirrors: Dual West-coast Bright Finish Heated, remote LH and RH; LH, RH dual 8 inch Bright-finish spot mirrors below West-coast mounted mirrors
Tinted Windshield, Tinted 63x14 inch rear glass, LH & RH door glass, operating wing window., LH & RH electric windows, locks, LH & RH reading lights. 4-spoke 18” steering wheel, LH & RH interior sun visors, single self-canceling turn signal switch with dimmer, washer/wiper, hazard in handle. External Sun Visor
Seat: Premium Sears Atlas 70 Series Premium High Back air suspension driver seat with 3 chamber air lumbar, integrated cushion extension, forward & rear cushion tilt, adjustable shock absorber, Dual Driver’s seat armrests, Basic High Back Non-Suspension passenger seat, RH Door panel armrest, 3-Point fixed D-Ring retractor Driver and Passenger seat belts.
Controls and Instruments: Low air pressure light & buzzer, 1) single brake application air gauge, 2” Primary & Secondary air pressure gauges, air restriction indicator w/graduations, electronic cruise control w/switches in LH switch panel, Odometer/Trip/Hour/Diagnostic/Voltage Display, 1x7 character, 26 warning lamps, data linked, ICU3, 2” fuel gauge, engine coolant emp. gauge, transmission oil temperature gauge, engine oil gauge, Adjustable surrounding Back-up Alarm. Radio: AM/FM/WB/CD, USB &Front auxiliary inputs, 2-radio in-cab speakers, Multi-Band AM/FM/WB/CB LH mirror mtd antenna system. 2-1/2 lb. Fire Extinguisher.
Tires: 48x31.00-20 front, 66x43.00-25 rear tires on painted steel wheels; 23 degree pitch are available on bias tires
Kenworth C500 Sludge
C500 4X4 BIO-Solid / Sludge Truck
ENGINE: Cummins X15 485HP
TRANSMISSION: Allison 4500RDS 6-Speed
TRANSFER CASE: 2 Speed Fabco
FRONT AXLE: 20,000 lb.
FRONT SUSPENSION: Slipper Front Springs, 23,000 lb.
REAR AXLE: AxleTech Planetary
REAR SUSPENSION: Reyco 79KB Multileaf 31,000 lb.
STEERING: Dual 30,000 lb. Gear Boxes
RADIATOR: 1780 Sq. In.
FUEL TANK: 100 US Gallons
Standard on our chassis:
Dual 15” Air Cleaners, ERA stainless steel cowl
Heated fuel/water separator
Engine block heater
Full gauge package
Heated Bendix AD-IS air dryer
Electric DS & PS door locks and power windows
Dual Moto heated 16” x 7” mirrors
Dual Convex heated mirror 8.5” w/offset mtg.
One-Piece windshield w/curved glass
Tinted Rear window 17 x 36 in.
Corner cab windows 17.5” x 16”
Premium interior package
Sears Atlas Premium 70 Modura Seats DS & PS
Dual Roof Mount Strobe Lights on Stainless steel bracketry
LED light pkg
AM/FM/WB/CD/USB/Bluetooth radio
and much more

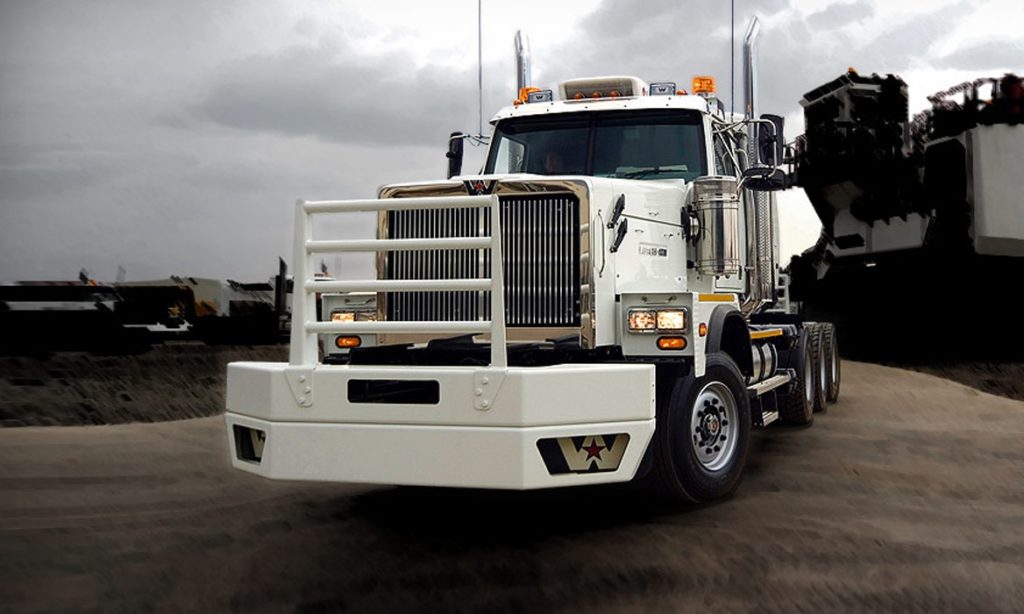

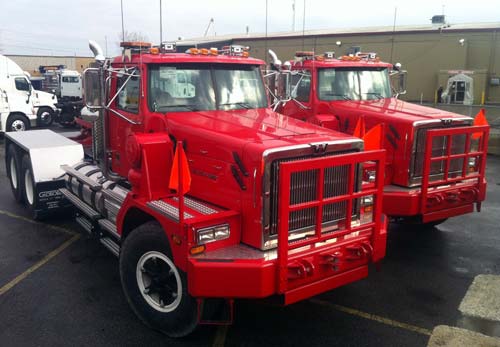

Western Star 6900 SBA 4x4 and 6x6
Air-Ride Cab suspension.
Front Axle Load (lbs.): 22,000
Rear Axle Load (lbs.): 29,000 GCW: (lbs.): 51,000
FRAME: Steel to 455 in. Truck frame weight is 4.70 lb. in. per pair of rails. Section modulus is 22.35.
RBM is 2,683,000 in. lbs. per rail.
Black Frame Paint
ENGINE: Detroit DD16, 500 HP @ 1850 RPM
TRANSMISSION & EQUIPMENT: Allison 4500 RDS 6-Speed with PTO provision. W/o retarder. Vocational Application only; incl: Shift Control, Heat exchanger & oil level sensor. Transmission Oil temperature gauge. Dash-mounted PTO Switches, Heavy Duty Driveline:
TRANSFER CASE: Fabco TC-142 2-Speed w/o PTO. Ratios: 1:00 to 1:00 High, 2:23 to 1:00 Low.
TIRES AND WHEELS: Front: BKT 650/55R26.5 Bar-Tread Design Rear: Firestone 54 x 37.00-25 20 PR Deep Tread
ELECTRICAL & OTHER EQUIPMENT:
Cruise Control Switches in Center Dash Panel
Alternator: 12V 160-Amp 36-SI Brushless Quadramount pad alternator with remote battery volt sense
Starter: 12V Heavy Duty, centralized power distribution incorporating plug-in style relays. Circuit protection or serviceability, 12V light system w/circuit protection circuit’s number & color-coded.
Battery Box: Stack, Single Frame Mounted, Polished Cover
Batteries: 3) GP31 threaded post totaling 3375 CCA
Battery Disconnect Switches: 2, located on battery box
Battery jumper terminal mounted under hood near starter
Air Compressor: Bendix 19.0 CFM Single cylinder w/Safety Valve
Jacobs Compression Engine Brake
Air Cleaner: Dual 13 inch Donaldson Polished Stainless Steel Cowl mounted, Single-Stage with polished Stainless steel bands
Fan Clutch: Horton Two-(2) speed, Automatic Fan control w/Dash switch and indicator light, non-engine mounted
Fuel/Water Separator: Davco 487 with 12V Pre-heater.
Heated Air Dryer
Block Heater: Phillips Temro 1500W 120V Immersion w/plug under door
Radiator: 1710 sq. in. Glacier Copper/Brass radiator core, Ethylene Glycol Pre-charged SCA Heavy Duty coolant.
Non-Removable Bug screen mounted behind the grille.
High-efficiency cooling system, Low coolant level sensor, constant tension band clamps
Exhaust: Single PS Vertical Exhaust, DPF/SCR RH under cab. Includes cab entry RH under cab, Full round stainless steel exhaust guard,
5" Chrome turn-out (clear-coat) stack.
13 Gal DEF Tank, Polished Aluminum Diesel Fluid Tank Cover
Back-up Alarm: 97 db.
FRONT AXLE:
Front Drive Axle rated 22,000 lbs. with ABS provision,
Front Brakes: Rated 24,000 with 16.5 x 7” +front brakes, Front Slack Adjusters-Automatic
Front Springs: 22,000 lb. rating, Flat Leaf Front Suspension with 62.5” Slippered Spring length, threaded pins
Steering Gears: TRW # TAS85 Main Box with RCS-65 Auxiliary Gear
Power Steering cooler: Oil to Air
REAR AXLE:
Rear Outboard Planetary Drive Axle rated to 29,000 lbs.
Rear Brakes: Meritor 18 x7” P-Cam, Double anchor pint, cast shoes, Automatic slack adjusters
Reyco 79KB 31,000 lb. rating Rear Suspension with 16 leaf springs, Fore/Aft Control Rods
FUEL TANKS:
One (1) 100 Gal. Polished Aluminum LH U/C, Pol. Stainless steel tank straps
Fuel Cooler
Additional step for cab access
FRONT BUMPER: 11” Painted Steel 5/16 Logger pumper with Chip Guard
Removable centered front tow pin for Logger Bumper, Single License plate mount
Perlux Clear Road (Driving) lights recessed in the bumper with Rock Guards
CAB & EQUIPMENT:
Vocational 141” BBC Flat Roof Galvanealed Steel Severe Service Cab
Heavy Duty Non-Sloping Hood with Hood Mounted Mirrors or Butterfly Hood (will advise at time of order.)
Severe Service Cab Insulation Package
Stainless steel Cab Skirt
Stainless Steel Sill Plates
Stainless Steel Radiator Shell/Hood bezel w/ Stylized Tilt Hood handle
Dual 26" rectangular polished aluminum air horns-Roof Mounted, dual horn shields
Single Electric Horn
Adjustable Steering Column: Tilt/Telescope
Steering Wheel: 18” 2-Spoke

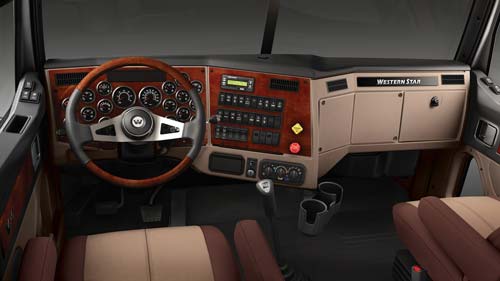

Instrument package includes speedometer, tachometer, fuel gauge, engine coolant temperature gauge, engine oil pressure, voltmeter, Primary & Secondary air pressure.
Driver Information Display Center: includes fuel economy, RPM display, trip information, truck information, diagnostics, gear display and
Clock. Instrument Package includes: Speedometer, Tachometer, 2” Electric Fuel Level Gauge, Engine Oil Pressure, Engine Coolant Temperature, 2 Air pressure, DEF level Gauge. 2” Transmission Oil temp. gauge, Engine Oil temp. gauge, General Air pressure
Outside Air Temperature Gauge with Fahrenheit and Celsius display mounted in overhead console
Auxiliary Toggle Switches: four (4) with four (4) 20-amp fuses/circuit breakers wired in main instrument panel
Vision Works Cab Mount 7” Camera Color Display, 2 Rear-mount cameras over rear of tank> over Deflector discharge or Toolbar.
Dual Amber LED Roof-Mount Strobe on Stainless steel brackets
Dual rectangular Headlights with replaceable Halogen bulbs and chrome eyebrow bezels
Door interior panel is lit, not a turn signal.
Driver & Passenger Seat: Premium Air-ride seat, high height backrests, adjustable seat track length, Three (3) chamber lumbar support, suspension with fixed damping, fore-aft isolator with lockout, vinyl bellow over suspension. Standard vinyl finish, color coordinate with interior color. Modura seat. Seat Belt. Dual Armrests.
Fender mounted turn signals
Five (5) Marker lights LED on roof, visor
Daytime Running Lights, over-ride switch for daytime running lights, momentary switch.
Smoky Mountain Gray Vinyl Premium interior, Black Hard trim, Black Mats with Double insulation,
LH, RH door mounted map pockets with built-in courtesy lights, power lift DS & PS window
Padded vinyl headliner
Royal Rosewood Matte Finish Driver instrument panel, Center instrument panel insert
Two (2) interior sun visors
Two (2) coat hooks on rear wall
Header mounted dome light, driver and passenger dome/reading lights, foot well lighting, integrated "dead pedal"
LH and RH extended exterior grab handles with rubber inserts and RH interior grab handle mounted to post
Two (2) 12V power receptacles mounted in dash
Tinted glass all window, including windshield:
Day cab 17.5” x 35” rear window, Power door locks and ignition switch keyed alike, two (2) keys provided and power window lifts.
Combo fresh air heater/air conditioner with radiator mounted condenser, dedicated side window defrosters, Bi-level heater/Defroster controls, Outside Sun visor is composite, painted cab color
Rear View Mirrors: Dual Aerodynamic West-Coast motorized heated mirrors, with cab color mirror shell and black mirror arms. Mirror controls located on the driver side door pad. 8" Stainless steel convex mirror. Lookdown mirror over passenger door
RADIO: AM/FM/WB,CD Player, Bluetooth, IPOD interface, USB and Auxiliary inputs, Four (4) speakers in cab. Electric windshield wipers with intermittent feature
Triangle reflector kit
2.5 lb. Dry Chemical ABC Fire extinguisher
PAINT: Color: Single Color / Two Stage - Cab/Hood Base Coat/Clear Coat paint
Frame: Black
