New Leader Spreaders

All of our products are built around quality and technology. The New Leader G4 spinner spreader revolutionized the crop nutrient application industry with its wide, consistent spread pattern. Other products such as the MultApplier and MultiBin add-on hoppers allow simultaneous spreading of up to four products, further increasing your return-on-investment.

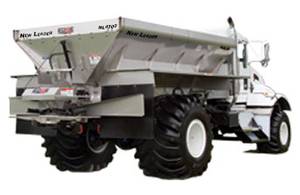

NL 4500G4 EDGE

L4500G4

The Edge features precise boundary spreading so you can apply material right up to a boundary line. The machine features increased gate openings and with the Edge with MultApplier insert you can reach higher rates, application speeds and widths. The MultiBin is also available for spreading up to four products in one pass.

The Edge is equipped with an ISOBUS system for easy "plug and play" for standardized connections, cables and software for use with any compatible controller. The system was built using precision manufacturing with laser cutting tech and slot and tab design, which gives the Edge self-centering components such as the spinner frame, material divider and hillside divider.  Precise boundary spreading is a key feature of the NL4500 G4 Edge from Highway Equipment Co.

An upgraded hydraulics system has been developed to support independent spinner speed control for boundary spreading, fast and exact conveyor control and an automatic chain tensioner and the Edge comes standard with automatic lubrication alerts.

Learn more about the G4 technology by visiting highwayequipment.com.

L4000_large_00AB1739C15E9

L4000G4

New Leader® L4000G4 is a culmination of the best of the best! The design of the L4000G4 provides modular hydraulic packages to suit your spreading needs, plus the ability to add a second, third or fourth bin at any time with the addition of the MultApplier or MultiBin.

L3030_7629878D960E0

L3030G4

Designed for flexibility and low maintenance, the L3030G4 crop nutrient applicator is the ultimate fertilizer and lime spreader. Spread fertilizer rates as low as 50 lbs. to as high as 1,100 lbs. and still achieve effective spread patterns up to 90 feet. You can even spread up to 2 ton rates of ag lime at 12 mph with spread widths up to 60 feet.

L2000_BE04406DCC951

L2000G4

The New Leader® L2000G4 is your reliable and affordable single-bin spreader for applying high rates of fertilizer and low rates of lime. This combination spreader features laser-cut manufacturing with a 304 stainless steel body and upgraded components for straight, semi-float, and full-float trucks.

L5034_large_2453FC58016A6

L5034G4

The New Leader® L5034G4 is the best built and most versatile compost spreader in the industry. Its superior features allow you to cover more ground in less time - while maintaining an accurate spread pattern - to make your business more profitable than ever.

MultiBin_A6A906012A253

MultiBin

The MultiBin Fertilizer & Micronutrient spreader increases efficiencies and reduces operation and maintenance costs by consistently broadcasting materials from three or four bins, independently or together, for straight and variable rate applications.

We offer Pull-Type Spreaders in Single Axle or Dual Axle

NL345G4 Drawn Dry Box Spinner Spreader

Features:

  • Struck capacity of 345 ft³ (9.77 cu.m) for single bin configuration
  • High floatation tires leave a light foot print despite massive payload.
  • 16’ - 102+6 wide body, available in 304 stainless steel or painted 409 stainless steel
  • Trailer mainframe with universal bull pull hitch, and four wheel braking system.
  • Walking suspension, that provides over 12” of travel.
  • New Leader User-friendly interface
  • New Leader Controlled Spreader Functions
  • Factory-Installed Electronics
  • ISOBUS Ready
  • Diagnostic Feedback
  • Automated Service Notifications
  • Low Bin Countdown

Conveyor System:

  • 30” (76 cm) #4 belt-over-chain capable of spreading Ag lime & fertilizer.
  • Consistently applies up to 60 ft. (18 m) spread patterns with Ag lime and 90 ft. (27 m) for fertilizer.
  • 24” (61 cm) wide feedgate can be opened up to 11” (28 cm) tall to handle large Ag lime rates.

High output and high capacity come together in the NL345 drawn dry box spinner spreader. For applicators who demand unrelenting performance for spreading ag lime and dry fertilizer, plus a superior return on asset, this machine delivers the flexibility to multi-task tractors for field operations including anhydrous ammonia application, strip-till and side dress application. High flotation tires leave a light footprint despite massive payload.

Advanced High-Capacity Conveyor System

The NL345 delivers smooth, continuous product flow, plus the durability to stand up to tough fertilizer and lime spreading conditions. And for the heaviest lime spreading, a #4 belt-over-chain conveyor incorporates a multi-ply belt over a heavy-duty pintle chain. The NL345 consistently applies up to 60 ft. (18 m) spread patterns with ag lime and up to 90 ft. (27 m) for fertilizer.

Precision Manufacturing:

  • Self-Centering Spinner Frame and Material Divider
  • Flip-up Hillside Divider
  • 304 Stainless Steel Cross Tubes and Mounts
  • 304 Stainless Steel Integrated Take-ups
  • Front, Rear, and Trailer Grease Banks

Advanced Hydraulics:

  • New Leader Hydraulic Manifold
  • Automatic Chain Tensioning
  • System Monitoring
  • Automatic Oiling Functions and Reminders

MultApplier Ready

Easily convert from single to dual product spreading with the revolutionary MultApplier. Bolted-in end gates and stainless steel hydraulic connections take this optional component to the next level, and make it easy to add or remove.    With the 7 ft. MultApplier installed, the NL345 spreads up to 90 ft. (27 m).  The dual hopper system features two independent conveyors that can simultaneously apply two products at predetermined or variable rates.

Truck CapacityCubic YardsCubic MetersCubic Feet
w/o MultApplier12.789.77345
w/7’ MultApplier7.155.47193
7’ MultApplier5.964.56161



Estimated WeightLBS.
Spreader5,202
MultApplier1,303
Trailer14,600

NL450C COMPOST SPREADER

The NL450C, not designed for fertilizer and lime, broadcasts material farther, wider, and more consistently than any other applicator.

  • Higher payload capacity and greater material output.
  • Precise record-keeping of environmental material applications.
  • Get the job done more accurately in less time.

Available in 304SS or 409 Painted Stainless steel, #1 chain with ½” x 1-½” crossbars is standard equipment with the #2 and #3 conveyor chains optional, the extra wide 34” (86cm) conveyor and 50˚side slopes provide better flow of material and increased output, and the 118” (300cm) wide body increases payload capacity for heavy spreading needs. The corrosion-resistant stainless steel conveyor floor prevents material build-up under the conveyor, providing longer service life to the overall conveyor system. Featuring dual 30” (76cm) spinners and tandem hydraulic system to broadcast material faster and farther, and minimize time in the field. the straight rear endgate is set farther into the body, feedgate is hydraulically controlled and comes with a feedgate sight gauge.

Compared to the average compost spreader, spinner power is increased by up to 50% and application rates are increased up to 33% or more.

Dimensions and Capacities

  • Length: 16'
  • Struck Capacity~ Cubic yard: 16.7

NEW LEADER NL4560G4 EDGE Large Capacity Drawn Spinner Spreader

Edge Follows the 4Rs of Nutrient Management

Right Source – Matches nutrients type to crop needs
Right Rate – Matches amount of nutrients to crop needs
Right Time – Makes nutrients available when crops need them
Right Place – Keeps nutrients where crops can use them

The NL4560 Edge continues that tradition with plug-and-play ISOBUS electronics that hook into compatible controllers through standardized plugs, cables and software. It also incorporates the power of diagnostic feedback, automatic service notifications, boundary spreading, a feed gate optimizer, low bin countdown, automatic chain oiler, and it can be expanded to control multiple bins.

This is a machine that makes repeatable, responsible nutrient management possible—with a mobility that’s unmatched in the industry. Advanced hydraulics makes it easy to connect and disconnect, so operators can easily put New Leader technology where they want it. More control comes from independent spinner speed and monitoring, plus the capability for boundary spreading of multiple products.

  • Large capacity (608 ft³) with 24” sideboards
  • 16’ - 102+6 wide body available in 304 stainless steel or painted 409 stainless steel
  • Trailer mainframe with universal bull pull hitch and four-wheel braking system
  • Walking suspension with over 12” of travel
  • 30” (76 cm) #4 belt-over-chain
  • 24” (61 cm) wide feedgate can be opened up to 11” (28 cm) tall
  • High floatation tires for light footprint

Precision Application

Spread materials faster, wider and more consistently, even on windy days, with proven G4 variable rate broadcasting technology. Take advantage of dual RPM sensors and pulse width modulation (PWM) valves to maintain precise speed on each individual spinner within 5 RPM. Giving operators the power to apply along a boundary line with the flip of a switch for the most precise nutrient placement for maximum yield potential.

Advanced Hydraulics

Experience fast and exact conveyor control, independent spinner speed control and extended conveyor life with the NL4560’s superior hydraulics system. High-tech sensors give operators early insights into potential issues by monitoring hydraulic condition and performance based on metrics including fluid level, temperature, filter restriction and conveyor and system pressure. Multiple test ports make in-field service and diagnostics easier.

Easy Maintenance

The NL4560 is built with the operator in mind – maximizing time in the cab and the field and simplifying maintenance. A flip-up hillside divider lets operators move easily between spreading lime and other products, while maintaining max flow and without getting out a single tool.

  • Front, rear and trailer grease banks for efficient greasing
  • Corrosion-resistant 304 stainless steel cross tubes, mounts and take-up brackets
  • Self-centering spinner frame and material divider

Extend conveyor life

The NL4560 maintains proper chain adjustments with an automatic chain tensioner. Continuous tension helps extend life. In addition, operators receive automatic lubrication alerts after 10 hours of conveyor run time.

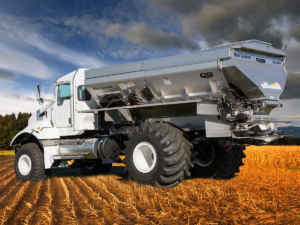

NL5000 G5 Variable Dry Rate Nutrient Applicator

RIGHT SOURCE • RIGHT RATE • RIGHT TIME • RIGHT PLACE
FEATURES & BENEFITS

PRECISION APPLICATION

  • 16-section swath width control
  • 1/2 width and remote spreading
  • Boundary spreading
  • Automatic feedgate and fan frame control
  • Precise independent spinner control and monitoring
  • Dual RPM sensors & dual pulse width modulation (PWM) valves for precise RPM on each spinner
  • Controls of less than 5 RPM difference between each spinner
  • Hydraulic feedgate controls for height adjustment from the cab
  • Feedgate optimizer to calculate and automatically set the feedgate

The NL5000 G5 makes it reality, making it easy for operators to not only target the right product to the right place, but also respect the environment without sacrificing productivity. How? A patent-pending spinner design delivers revolutionary left to right and right to left swath width control for never-before-seen spreading precision, which maintains a precision drop point for repeatable product placement. The G5 gives operators the ability to shift the fan frame fore and aft as well as left and right to control the swath. This alters where the product falls onto the spinners while moving through the field. This technology along with adjusting the conveyor speed gives pinpoint accuracy capabilities. Spread materials fast, wide, and with increased accuracy and consistency, with patented G5 spinner technology. Next-level technology gives operators right to left and left to right swath width control for more accuracy in placing nutrients. But the real difference comes from the unprecedented spinner and spinner assembly control in the G5 design, delivering unmatched precision product placement.

EASE OF USE

  • New Leader user interface
  • System & product output sensors
  • Feed gate optimizer
  • Diagnostic feedback
  • Complete controller package installed
  • Automatic feedgate and fan frame control

Experience fast and exact conveyor control, independent spinner speed control and extended conveyor life with the superior New Leader hydraulics system. High-tech sensors give operators early insights into potential issues by monitoring hydraulic condition and performance based on metrics including fluid level, temperature, filter restrictions and conveyor and system pressure. Multiple test ports make in-field service and diagnostics easier. A new anti-cavitation system reduces the vibration and metal erosion that causes hydraulic system failure, and helps quiet the spinners during shutdown.

EASE OF MAINTENANCE

  • Centralized lubrication
  • Manufactured to reduce adjustments
  • Automatic chain tensioner
  • 304 stainless steel cross tubes, mounts, and take-up brackets
  • Automatic chain oiling

The NL5000 G5 maintains proper chain adjustments with an automatic chain tensioner. Continuous tension helps extend life. In addition, operators receive automatic lubrication alerts after 10 hours of conveyor run time. Built with the operator in mind, the NL5000 G5 simplifies maintenance to maximize time in the field. A flip-up hillside divider lets operators move easily between spreading lime and other products, while maintaining max flow – and without getting out a single tool. Precision manufacturing for fewer adjustments, Corrosion-resistant 304 stainless steel cross tubes, mounts, spinner & feed jack handles and take-up brackets, Front and rear grease banks for efficient greasing, and Automatic chain tensioner to extend conveyor life.

New Leader User Interface

No need to operate multiple displays—the user-friendly New Leader interface makes it easy to get to work without a learning curve. The intuitive, easy-to-use New Leader user interface appears once the system is connected to a virtual terminal. It also incorporates the power of diagnostic feedback, stored profiles, automated service notifications, low bin countdown, automatic chain oiler and more.

  • Ag Leader-developed plug-and-play ISOBUS technology hooks to any compatible display
  • Stores up to 25 profiles for quick recall when changing products
  • Expandable to control multiple bins, tarps, lids and lighting functions

Can I apply more than one product with the G5?

Increase efficiencies and productivity by adding a 5 ft. or 7 ft. MultApplier insert to the NL5000. Adding a MultApplier lets operators spread one or two products simultaneously or at variable rates in one pass. Featuring increased gate openings, the NL5000 G5 with MultApplier can reach higher rates, application speeds and widths. For the addition of micronutrients, the MultiBin is also available, for spreading up to four products in one pass. Additionally, the improved waterfall divider and matched-rate output of the MultiBin is now standard on the NL5000 G5 and supports even higher rates of output. That means more flexibility for a wider variety of micronutrient applications.

Single Axle Spreader on Duo Lift Trailer

Single Axle Spreader on Duo Lift Trailer

16 ft New Leader L3220 G4 on Duo Lift Trailer 50,000 GVWR, PTO Drive, 850/50R 30.5 16 ply tires

16 ft New Leader L3220 G4 on Duo Lift Trailer 50,000 GVWR, PTO Drive, 850/50R 30.5 16 ply tires

Linco Precision Pull Type Spreader
