Parkhurst Manufacturing Truck Bodies

Parkhurst Grain Stake Type

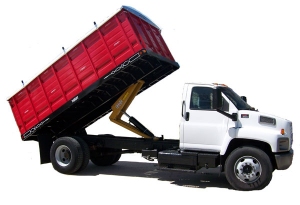

thumb_Stake_Type_Grain_f_historyThe simple to remove racks make this body quite versatile.  Offering the producer or hauler a flat platform deck during the off season.  Perfect for moving hay, equipment and sundry cargos.

Stake Type Grain Rack Specifications

  • Lengths: 8’, 9’, 9’6”, 10’, 11’, 12’, 14’, 16’, 18’, 20’, 22’, 24’
  • Widths: 96” and 102”
  • Heights: 42” and 52”
  • Sides and Front: 42” x 16 gauge and 52” x 14 gauge
    • Roll formed with integral tarp rail for strength
    • 14 gauge roll formed stakes with 12 gauge liners
  • Rear: Two wings with center slide in metering gate and bull bar
    • 42” has 10” filler panel
    • 52” has 20” filler panel
  • Finish: Powder coat gloss red

Parkhurst Grain Stakeless

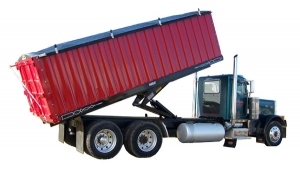

thumb_Stakeless_Grain_BodyParkhurst Stakeless Grain Bodies offer durability, strength and larger payloads.  Corrugated panels are one piece, clean flow design with heavy guage tubing top rail.  You can choose between triple and double rear doors with one, two or three metering gates.  Swing out header bar allows forklift access for hauling bagged/skidded material.. Put a Parkhurst Stakeless Grain Body and Parkhurst Hoist on your next grain truck.  You will be glad you did.

Stakeless Grain Rack Specifications

  • Lengths: 16’ to 24’
  • Widths: 96” standard, 102” optional
  • Height: 62” standard, 52” on 16’ body optional
  • Front and Sides: 14 gauge material, 5” vertical ribs on 6” centers with
    • 10 gauge reinforcing liner at crossbar attachment area.
    • Full length tarp rail 3” x 2” x 11-gauge tubing.
    • Bottom plate 3” x 14” with pre-punched holes.
    • 10-gauge front corner angle
    • Cross bars 1 ½” x 1 ½” x 14 gauge tubing.
  • Rear Doors: Triple or Double Cargo Doors
    • Doors feature fully welded unitized 12-gauge frame pre-hung, with cam lock on each door.
    • 3” x 2” x 11-gauge tube swing out header bar.
    • Heavy duty hinges
    • Triple door has one metering gate (7” x 15”) in each door.

Rear Door Options

Door options to suit your application.  The cargo doors evolved through years of experience in the grain fields.  Not cheap but worth every penny load after load, year in and year out they keep swinging.

double cargo doors or762 resized triple cargo doors or862 resized

OR700 Series Double Cargo Doors

Model OR742

  • 42” high
  • Doors: Pre-hung, independent, each with cam lock
  • Frame: Unitized welded steel construction with swing away / removable header
  • Full Opening: 37 ½” x 87 ½”
  • Metering Gate: one each door; 7” x 15 ¼” opening
  • Installation: Bolt to body

Model OR752

  • 52” high
  • Doors: Pre-hung, independent, each with cam lock
  • Frame: Unitized welded steel construction with swing away / removable header
  • Full Opening: 47 ½” x 87 ½”
  • Metering Gate: one each door; 7” x 15 ¼” opening
  • Installation: Bolt to body

OR800 Series Triple Cargo Doors

Model OR842

  • 42” high
  • Doors: Pre-hung, roadside independent; center independent or bi-fold; curbside bi-fold; each with cam lock
  • Frame: Unitized welded steel construction with swing away / removable header
  • Full Opening: 37 ½” x 87 ½”
  • Metering Gate: one center door; 7” x 15 ¼” opening
  • Installation: Bolt to body

Model OR852

  • 52” high
  • Doors: Pre-hung, roadside independent; center independent or bi-fold; curbside bi-fold; each with cam lock
  • Frame: Unitized welded steel construction with swing away / removable header
  • Full Opening: 47 ½” x 87 ½”
  • Metering Gate: one center door; 7” x 15 ¼” opening
  • Installation: Bolt to body

Model OR862

  • 62” high
  • Doors: Pre-hung, roadside independent; center independent or bi-fold; curbside bi-fold; each with cam lock
  • Frame: Unitized welded steel construction with swing away / removable header
  • Full Opening: 57 ½” x 87 ½”
  • Metering Gate: one center door; 7” x 15 ¼” opening
  • Installation: Bolt to body
