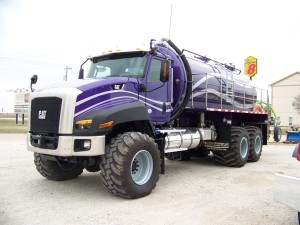

Introducing our BIO-PLIER 5500

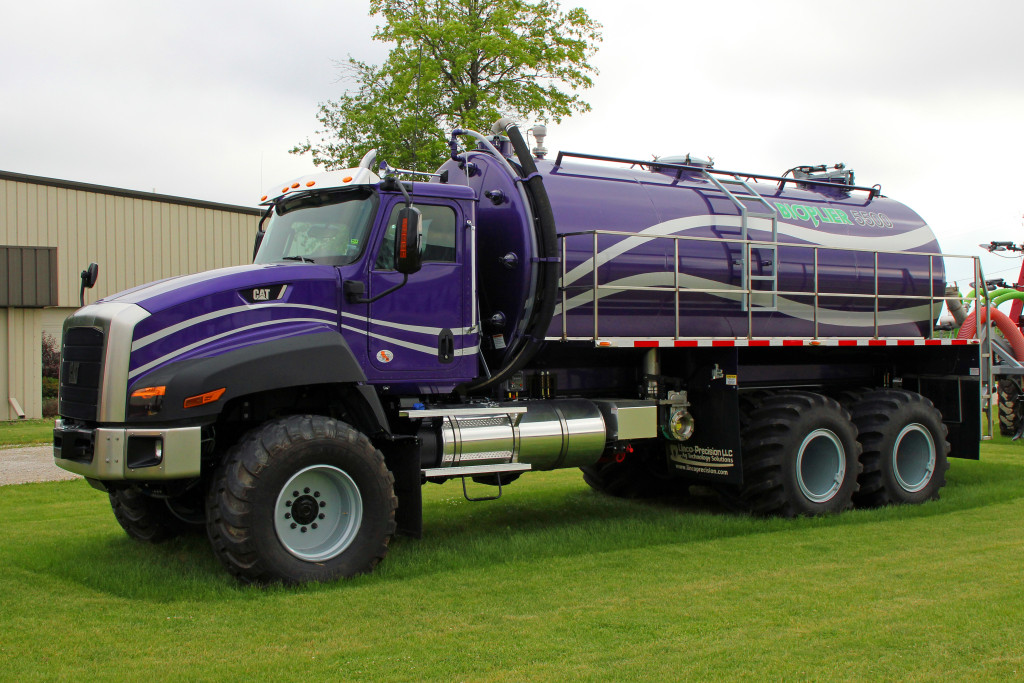

Linco Cat 3

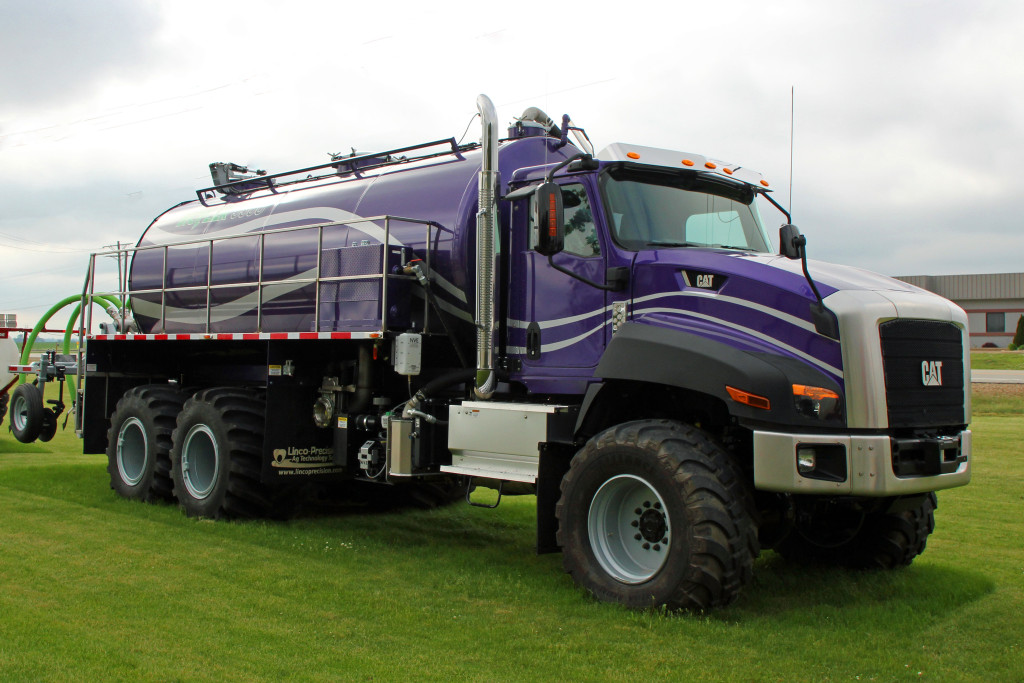

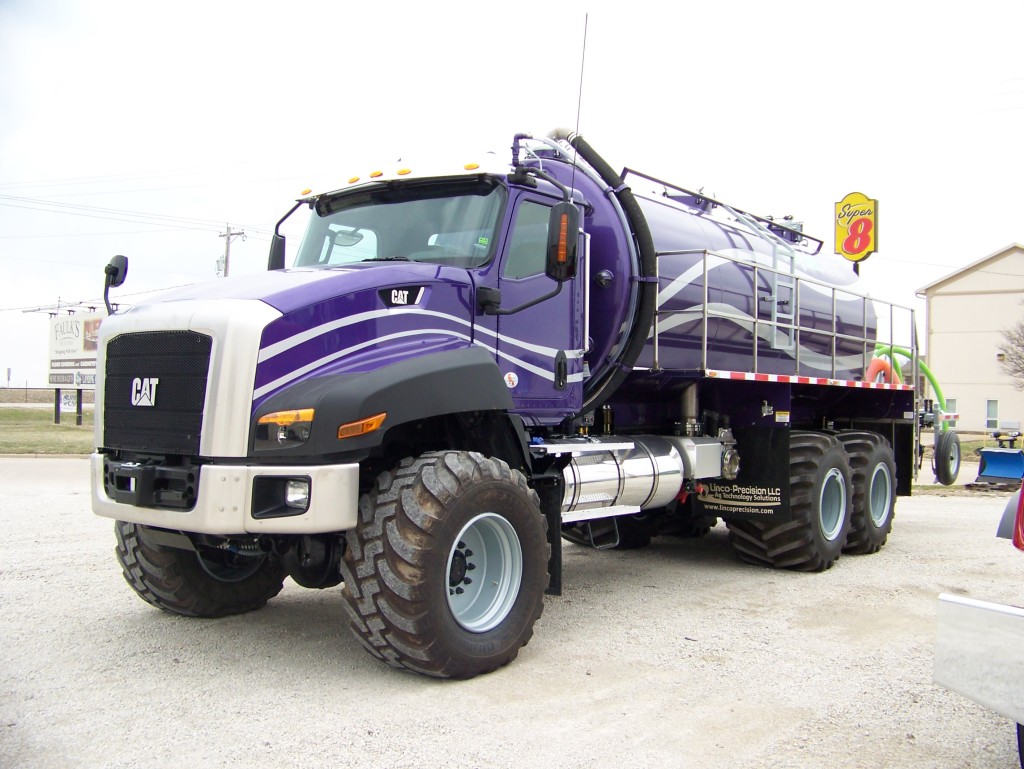

CHASSIS

Cat corporate special order Model CT660L 6x6 with chassis and electrical specifications by Linco-Precision.  Model CT13 engine built to Linco-Precision and CAT engineering specs, featuring 475 HP with 1700 ft lb torque@1000 engine RPM.  CAT Model CX31 programmable automatic transmission with factory PTO and hydraulic pump.  58,000 lb rear axles with 60” spread.  Fabco transfer case and front axle.  Nationwide factory warranty and service options by CAT.  Custom paint schemes available in our full service truck body shop.

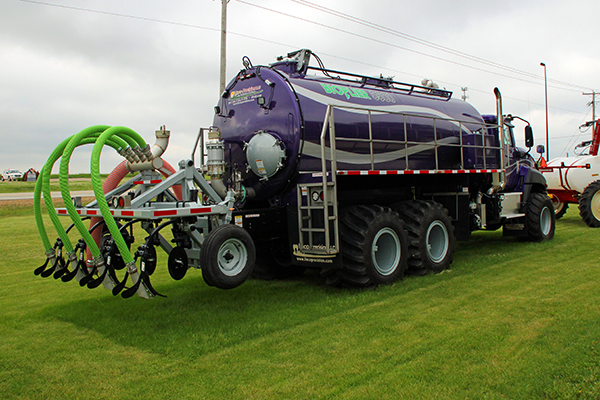

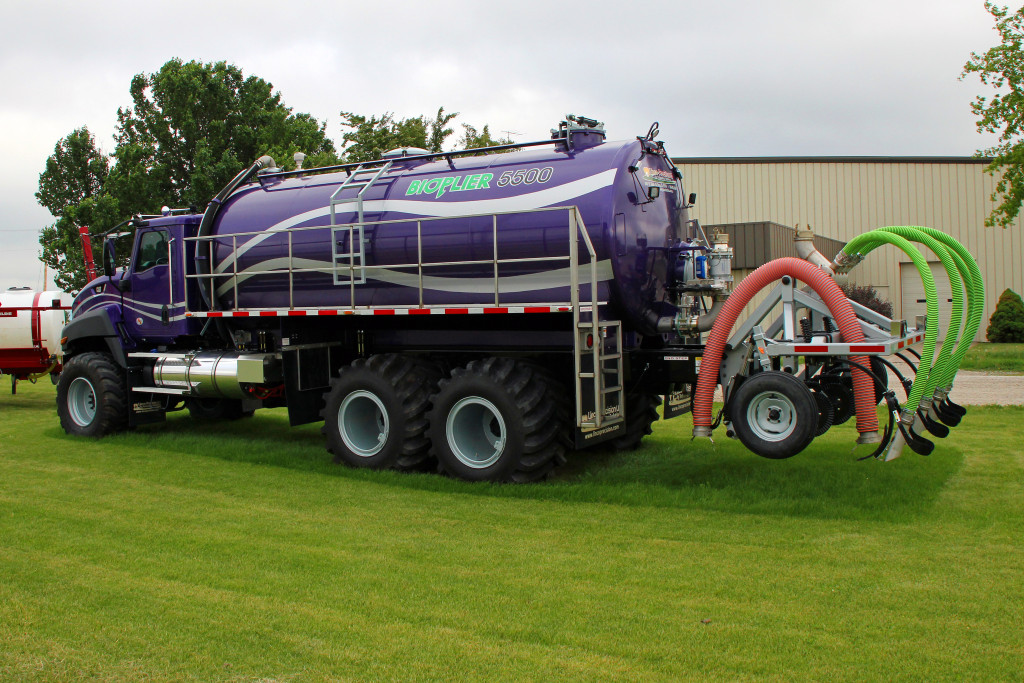

SLUDGE SYSTEM

5500 gal pressure/vacuum tank, 82” x 19’, with 5/16” walls and 2 baffles.  25” manways (top and rear), 20” hydraulic top load hatch.  Dual 6” side mounted load ports, 6” rear discharge port.  All plumbing is TIG welded stainless steel.  12” National Vac primary, National Vac Challenger MAX PAK 866, National Vac stainless steel knife type air valves, 5” sight glasses.  Raven Viper PRO rate controller with GPS and light bar.  6” mag-induction flow meter and 50 gal PWM motor control.

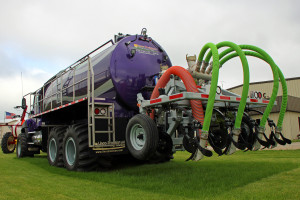

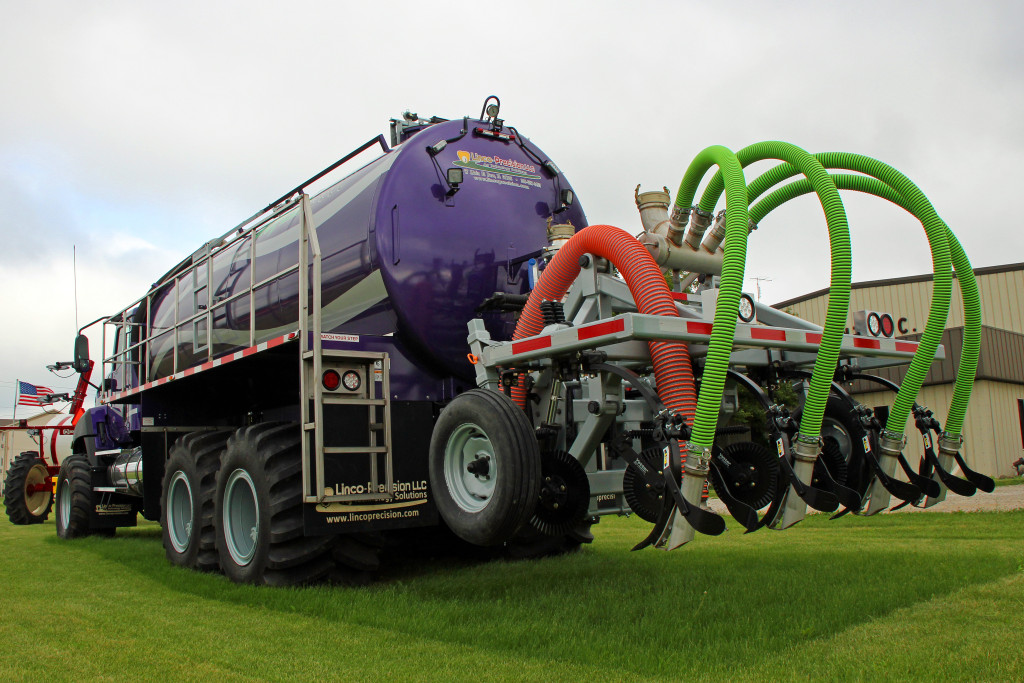

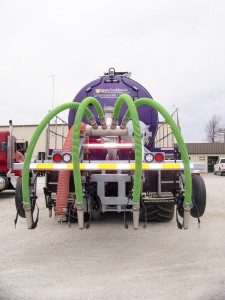

Linco-Precision custom toolbar configurations to client specifications.  Optional Kongskilde toolbars up to 25 knives on 10” centers.

Custom built for city municipalities Bio Solids divisions or for Agricultural Farm Manure Spreading.  Many other options available in liquid or dry.

Over 35 years experience in Bio Solids Applications, On and Off Road Equipment and Service Repairs.  Contact John Kelly for more details or for a field demonstration.



Smart Trax, Auto Steer and Viper Pro were added to this unit by Linco Precision to monitor the liquid application rate.

Contact us for all for all of your reconditioning needs!

This unit designed to spread bio-solid and slurry type materials
